Overview of Medium Chamber Machines

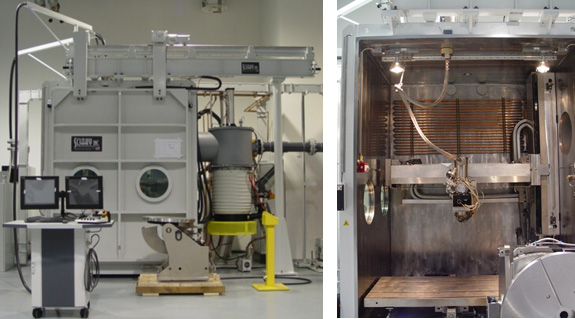

Sciaky designs and manufactures medium vacuum chamber EB welding systems with state-of-the-art internal moving guns. These systems commonly utilize low voltage and high power, and are ideally suited for medium-sized parts.

Advantages of medium-scale EB welders include:

• Motion system designs include ceiling mounted gantries and rear-wall mounted booms that, depending upon system configuration, manipulate the EB gun using X, Y, Z, and gun tilt.
• Standard designs are available, and custom engineered solutions are often created to meet customer requirements.
• Scalability of process to weld thin foils to thick sections (greater than 2.5" depth-of penetration).
• CNC control systems coordinate all EB process parameters.
• High depth-to-width ratio weld profiles provide low distortion and excellent mechanical properties.
• The high vacuum environment provides an excellent inert environment for welding many reactive metals and alloys with pumping technologies up to 200,000 l/s.
• High precision and repeatability.

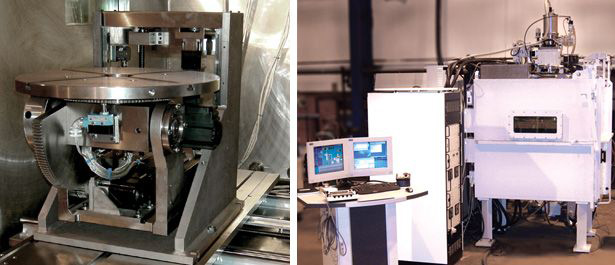

• Sciaky offers many standard CNC-controlled part manipulators, designed in several load capacities, including rotary tables, rotary headstock / tailstocks, and rotary tilt positioners.

Sciaky's standard Medium-Chamber EB welding systems are available in two configurations. Use the tabs above to learn more about each machine's capabilities.

In order to better serve you, Sciaky offers financing and leasing options for U.S. customers who purchase EB welding systems, making it easier than ever to acquire this industry-leading technology. Ask your Sciaky sales representative for details.
